Voltage Sensor 2.5V

Each sensor requires a sensor cable to connect to LabMate+ or Tablet+. Sensor cable sold separately.

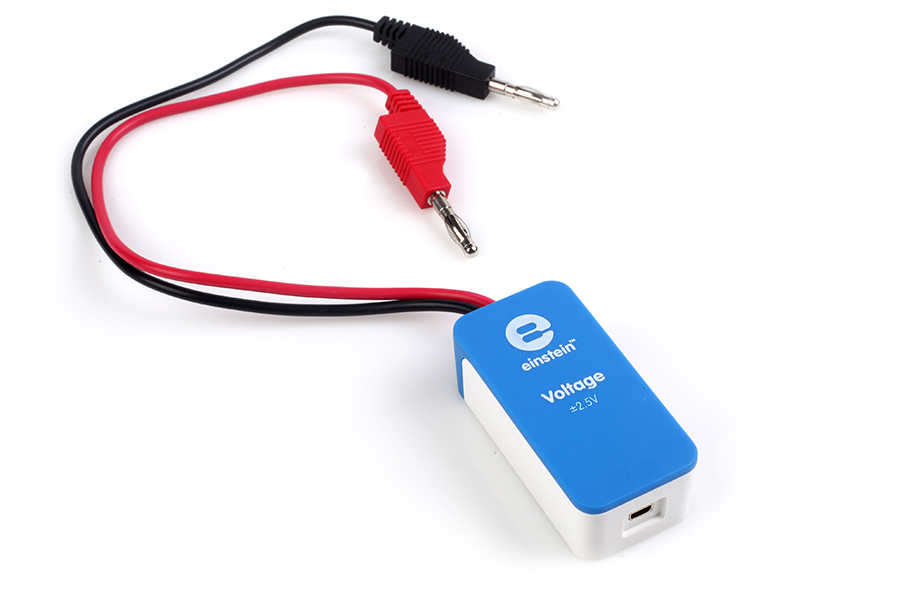

This sensor is a regular voltage sensor, measuring between -2.5 and 2.5 Volts. It is a differential sensor, capable of measuring both direct and alternate current. The sensor has two durable banana plugs for easy connection. The Voltage Sensor also has floating inputs, allowing any number of voltage sensors to a circuit to be connected, without shortening them.

Specifications: Range: ±2.5 V
Input Voltage: AC or DC
Accuracy: ±3 % over entire range
Resolution (12-bit): 1.25 mV
Sensor Inputs: Differential and floating
Input Resistance: >1 MΩ
Maximum Input Voltage: 60 V

Measurements are approximate.
