Variable Plate Capacitor

Variable Plate Capacitor Variable Plate Capacitor
Click to enlarge
Click to zoom

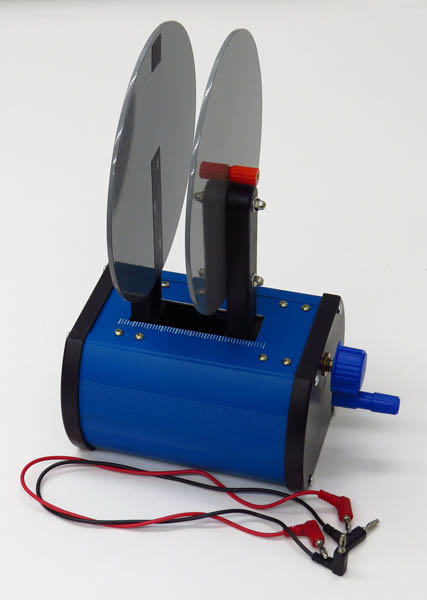

Variable Plate Capacitor

The Variable Plate Capacitor is a great tool to demonstrate to students how a parallel plate capacitor functions. The distance between the plates can be varied to analyze the capacitance. This instruction manual comes with a theoretical section about capacitors, a STEM section that describes applications of capacitors and laboratory suggestions that can be used with additional materials.

Dimensions:

    Base (LxWxH): 6.69 x 5.31 x 3.93 Inches (170 x 135 x 100mm)
    Adjustment Handle: 1.96 Inches (50mm)
    Plate Diameter: 7.08 Inches (180mm)
    Total Unit Height: 11.81 Inches (300mm)

Complete instructions included.

Measurements are approximate.

Catalog # 1476-10
Shipping Weight 4.00 lbs
Stock Not In Stock

Our price: $74.50
