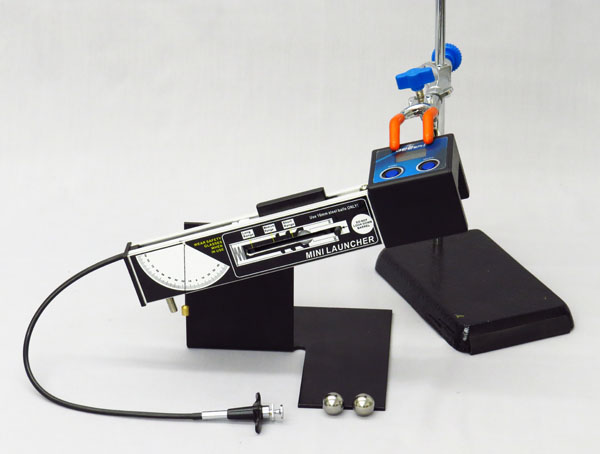

Student Projectile Launcher with BeeSpi Photogate Timer, Clamp & Stand

Provided with 2 marbles, BeeSpi Photogate Timer, 4 x 6 in stand, and swivel clamp.

This projectile launcher is designed to demonstrate two dimensional motion and how motions in each dimension are totally independent from one another. This precision apparatus allows for repeatable results that can describe the projectile's motion. Projectile range, vertical height, and time of flight are all easily equated. Firing a marble off of a counter top can model a canon shooting off of a cliff and the sturdy stand and clamp allow for accurate velocity readings at the push of a button from the BeeSpi photogate to make the physics modeling accurate and fun. Remote marble release trigger with stable base for launcher.

Dimensions:
Metal Base: 150 x 150 mm (6 x 6 inch)
Launcher Body: 190 mm (7.5 inch)
Spring Push: 63 mm (2.5 inch)

(# 635-15) BeeSpi Photogate Timer Velocimeter
The BeeSpi detects an object passing through two points about 40mm apart via built-in photo sensors and indicates the velocity of the object in digital form. Infrared sensors located in two spots on the inside walls of the unit detect the time when an object passes each spot. As a result, the velocity of the object, calculated from the difference in time, is indicated.

Dimensions:
Outside: 60 x 60 x 50 mm, 2.25 x 2.25 x 2 inch (L x W x H)
Inside the Tunnel: 40 x 30 mm, 1.5 x 1.125 inch (W x H)
Weight: 70 g, 2.5 oz.

(# 3351-1) Support Stand
Support Stand Cast iron, rectangular, baked black enamel finish base with hole for fixing the rod. Plated steel rod one end half round other end machine threaded.

Dimensions:
Base: 100 x 150 mm, 4 x 6 inch (L x W)
Rod: 8 x 460 mm, 5/16 x 18 inch (Dia x L)

(# 3410-18) Clamp Condenser Three Finger Swivel Type
Strong die-cast construction. Covered jaws for protection and grip. Swivels 360 degrees and can be locked in any angle.

Dimensions:
Total length: 200 mm, 7.75 inch
Jaws open: 90 mm, 3.5 inch
Rod size: up to 20 mm, 0.75 inch

Detailed instructions & Labs included.

Measurements are approximate.
