Smart Pulley Sensor

Smart Pulley SensorSmart Pulley Sensor
Click to enlarge
Smart Pulley Sensor

Each sensor requires a sensor cable to connect to LabMate+ or Tablet+. Sensor cable sold separately.

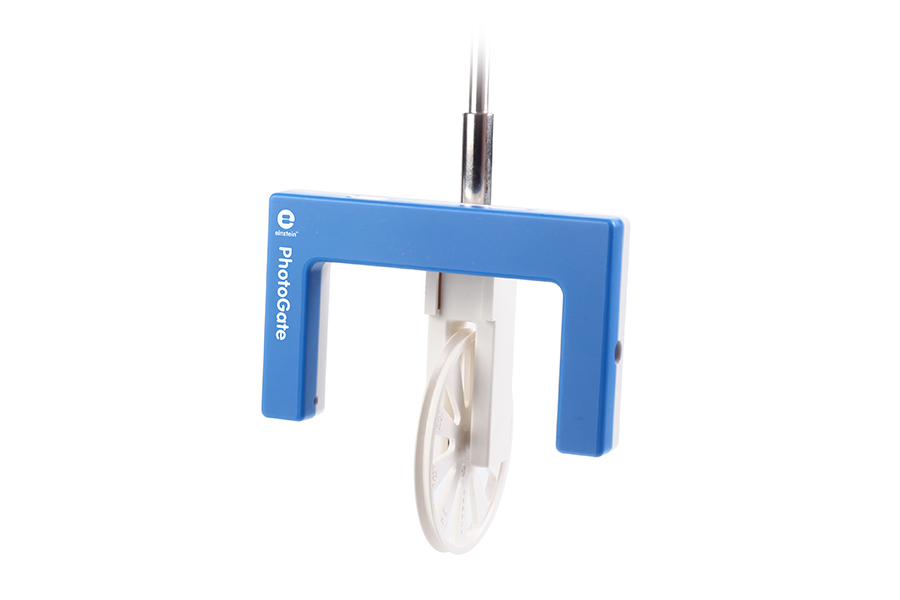

This Smart Pulley is comprised of a pulley and Photo Gate Sensor. It is used to measure the speed of a string suspended over the pulley by measuring the tangent velocity of the pulley.

Specifications:

    Range: 0 to 99 m/s
    Accuracy: 0.05 m/s
    Timing Interval: < 5 μs

Parallax Error: For an object passing within 1 cm of the detector, with a velocity less than 10 m/s, the difference between the true and effective length is less than 1 mm. Infrared Source: Peak at 800 nm

Measurements are approximate.

Catalog # ENSMP-A122
Shipping Weight 2.00 lbs
Stock Not In Stock

Our price: $99.00
