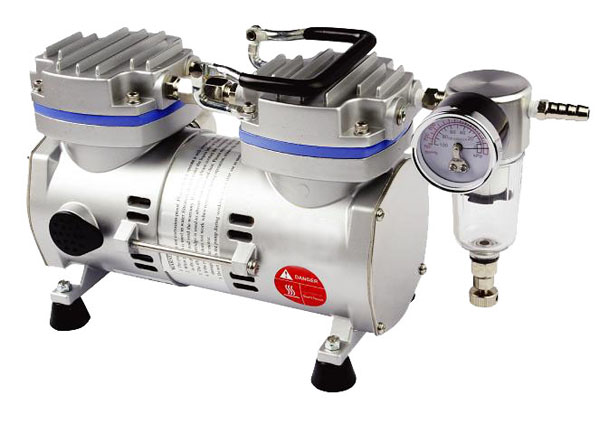

Compact Laboratory Pump 1/6 HP 220V

Piston-powered and oil-free vacuum pump/compressor with innovative mechanical and electronic technology. It is quiet, safe, maintenance free and very comfortable! Features a directly motor driven transmission mechanism and quality rubber feel to keep noise levels lower when compared to equivalent products. This pump is also appropriate as a pressure air supplier or suction unit being an adaptable product to many laboratory and industry requirements. Is designed witha an aluminum die-cast and precise construction making it small, compact, and light weight. The oil-free design makes it clean and maintenance free!

Applications

• Vacuum oven
• Vacuum cabinet
• De-gassing
• Aspiration

Features

• Quiet and low vibration
• Compact, Lightweight, Easy to use
• Clean and maintenance free
• Safe and comfortable

Specifications

• Max. Power Consumption (Watts):~80 (220V)
• Noise Level:~50dB
• Port Thread:~5/16 inch
• Net Weight:~11.5 lbs
• Pole:~4P
• Horse Power:~1/6 HP
• Capacitor:~3uf/450V
• Motor Rotation:~1450 RPM
• Max. Current (Amps):~0.4
• Max. Vacuum:~-730mmHg=97.33kPa=30Torr

  Measurements are approximate.
