Resonance Apparatus Complete Advanced

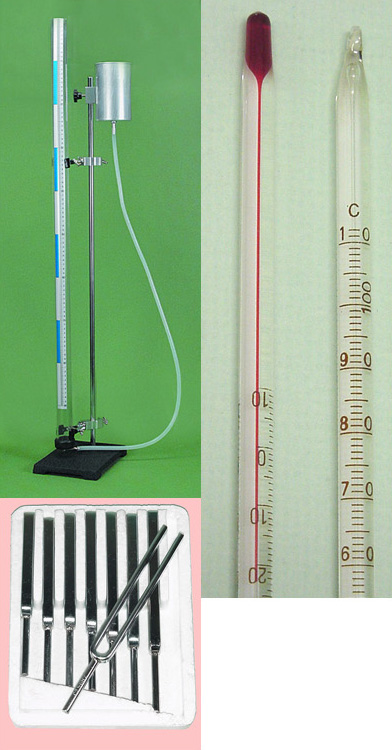

To investigate Resonance of Air Columns, calculate Velocity of Air, Wavelength of Tuning fork. Included are heavy Support Stand with rod, two Clamps, Graduated Acrylic tube, Aluminum reservoir, plastic tubing, Tuning Fork Set of 8 and one Thermometer Red Spirit Filled. Complete with detailed Instructions.

• Cast Iron Support Stand: Base- 8.7 inch (220 mm) x 5.8 inch (145 mm), Rod- 36 inch (910 mm) Long x 0.5 inch (12.5 mm) dia.

• Graduated Acrylic Tube: 39 inch (1000 mm) long x 1.5 inch (38 mm) dia.

• Graduations: 0 to 900 mm x 1 mm

• Tuning Forks Set of 8: 1 each of C-256, D-288, E-320, F-341.3, G-384, A-426.6, B-480, C-512. Length Varying between 4.5 inch (120 mm) to 6 inch (150 mm)

• Thermometer: -10 to 110C, 12 inch (300 mm)

• Instruction Manual

A preview of the included instructions can be found at the bottom of this listing.

Measurements are approximate.
