Quincy Lab Gravity Convection Oven Digital Low Temperature 1.27 cu. ft

• Digital Microprocessor Control

• Air Forced Gravity Convection

• Durable Double-wall Construction

• Scratch-resistant Hammer Finish

• Corrosion-resistant Aluminized Interior

• Full 18-month Factory Warranty

• Proven Reliability

Advanced Design. Cabinets are as attractive as they are durable. Exteriors are painted light gray and have hard, scratch-resistant hammer finish. Doors open with high-impact thermoplastic handles. Cabinets have heavy steel double-wall construction. Work space is insulated from outer cabinet with one inch of high-density mineral wool, and interiors are made of corrosion-resistant aluminized steel.

Controls. The digital control combines the features of the analog model but offers the ease of temperature setting and the stability of full PID microprocessor that accurately maintains settings with +/- 1 degree Celsius, even in varying ambient or power supply conditions. A temperature-tracking feature stores temperature deviation from set point. This feature helps to confirm stability or indicate any control malfunction or power loss throughout a process period. The digital controller features large LED’s that continuously display process temperature as well as a setting lock mode that provides protection against accidental or inadvertent adjustment.

Heating Elements. Energy-efficient, low-watt density incoloy sheathed elements are engineered into a compact design for quick run-up and recovery times. Temperature uniformity is greatly improved by a perforated heat shield which absorbs radiant heat and distributes it more evenly.

GCE-LT Models. Quincy Lab uses only quality UL and CSA recognized components in all ovens. The GCE-LT series gravity convection ovens are designed to meet laboratory needs of industry, research organizations, and schools. Well-crafted and versatile, they are used for part drying, baking, curing, sterilizing, evaporating, heat treating, annealing, and testing. GCE-LT series ovens have a temperature range to 210 degrees Fahrenheit / 9 degrees Celsius, and are competitively priced and offer exceptional value and reliability.

General Specifications

Interior Dimensions (W x H x D): 13 x 13 x 13 (Inches), 33 x 33 x 33 (CM)
Exterior Dimensions (W x H x D): 15 x 21.5 x 15.3 (Inches), 38 x 54.6 x 38.9 (CM)
Capacity: 1.27 Cubic Feet, 36 Liters
Temperature Range (Ambiet +15F to F / C): 210F / 99C

Shelves (1 Inch Centers)
Maximum Shelves Per Unit: 13
Maximum Weight Per Shelf: 35 Pounds

Electrical
Volts/Amps: 115 / 2.6
Watts: 360
Plug/Nema: 5-15P

Stand Alone Wieght: 43.5 Pounds

Performance Characteristics

Control Stability (@75 degrees C): +/-0.8 degrees Celsius
Time to Temperature (Ambient to Max): 30 Minutes

Recovery @200 degrees F
Door open 15 seconds: 5.5 Minutes
Door open 30 seconds: 8 Minutes

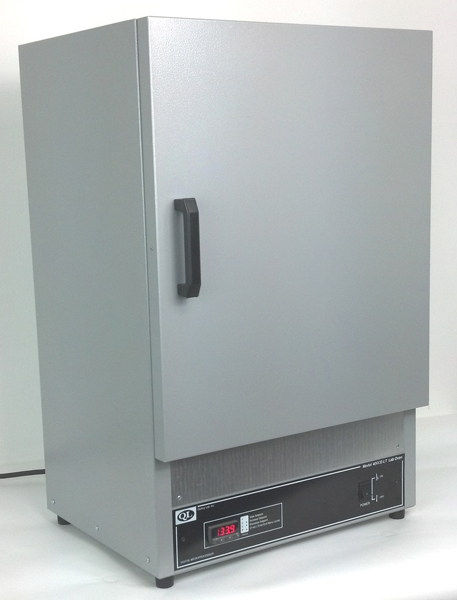

Picture is a representation of Gravity Convection Oven Digital Low Temperature, please refer to product description for individual item specifications.

Measurements are approximate.
