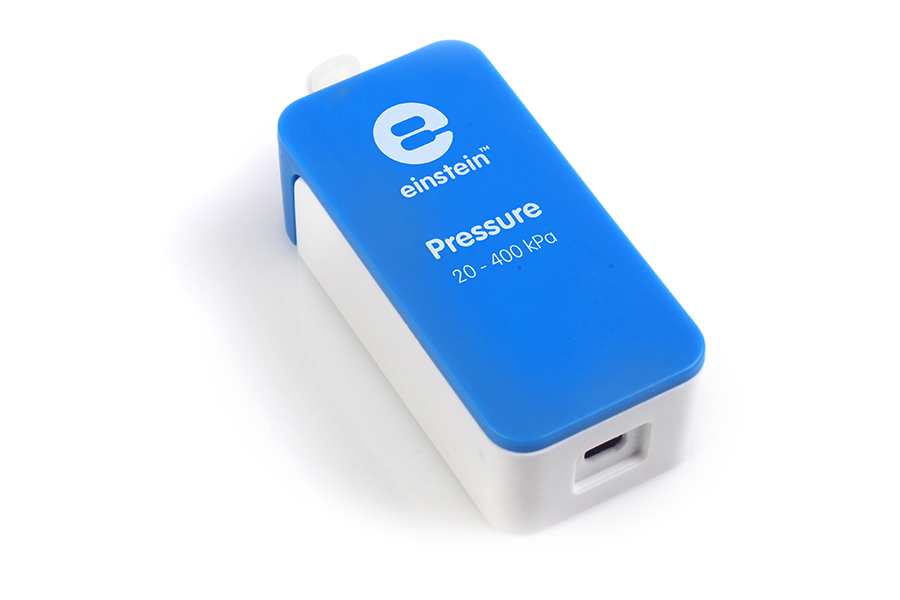

Pressure Sensor (20-400kPa)

Each sensor requires a sensor cable to connect to LabMate+ or Tablet+. Sensor cable sold separately.

The Pressure Sensor (0-700 kPa) is an absolute gas pressure sensor. It measures applied external pressure relative to zero pressure reference sealed inside the sensor. The Pressure sensor’s range is 0-700 kPa (0-6.9 atm or 0–7,000 mbar).

Included with this sensor are a plastic tube with a Luer Lock Connector, suitable for experiments in small containers as syringes and valves.

Specifications:

Range: 0 - 700 kPa
Accuracy: ±3 % over entire range
Resolution (12-bit): 0.18 kPa
Default Sample Rate: 10 samples per second
Response Time (for 90% change in reading): 1 ms
Operating Temperature: 0 to 85 degC

Features: Equipped with an offset calibration screw

Measurements are approximate.
