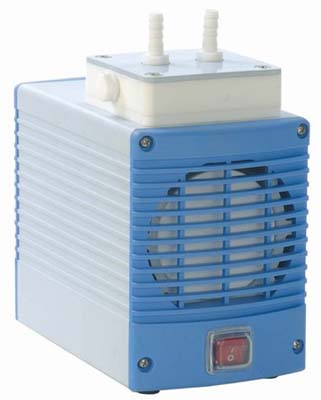

PTFE Vacuum Pump 1/8 HP 110V

Chemical resistant, diaphragm vacuum pump which can be widely used to handle acidic, basic, and solvent vapors by utilizing corrosion proof PTFE on all wetted surfaces. This pump is a chmical vacuum pump that can be used in various applications. All wetted parts are made of PTFE material and outer case processed with squeeze-casting aluminum and anti-rust treatment. An air driven diaphragm and oil-free design will lower both cost and maintenance. This pump is designed to be operator friendly and thanks to innovative mechanical technology, the noise level is only 50dB which makes for a noise free laboratory. The pump is equipped with a thermal protection device that automatically stops the pump from running once it is over-heated and allows for resumption after the working temperature cools down.

Applications

• Various Filtration Applications
• Gel Drying, Blotting after Electrophoresis
• Rotary Evaporator
• Centrigugal Evaporator
• Solid-Phase Extraction (SPE)

Features

• Acid, Alkali & Organic Vapor Resistant
• Compact size & Space saving
• CE-approved
• Low price & Cost Effective
• Low Noise Level @ 50dB

Specifications

• Max. Power Consumption (Watts):~70
• Max. Current:~0.8
• Max Flow Rate: 25 lpm
• Max. Vacuum: 600 mm Hg (79 kPa)
• Max. Pressure:~25 psi
• Motor Rotation:~1700 rpm
• Capacitor:~4µf/250V
• Horsepower:~1/8 HP
• Pole:~4P
• Weight:~Net - 11, Gross 13
• Dimensions, W x H x D, inches:~8 x 4 x 9
• Port Thread:~5/16 inch
• Noise Level:~50dB

  Measurements are approximate.
