Multi Parameter Portable Meter

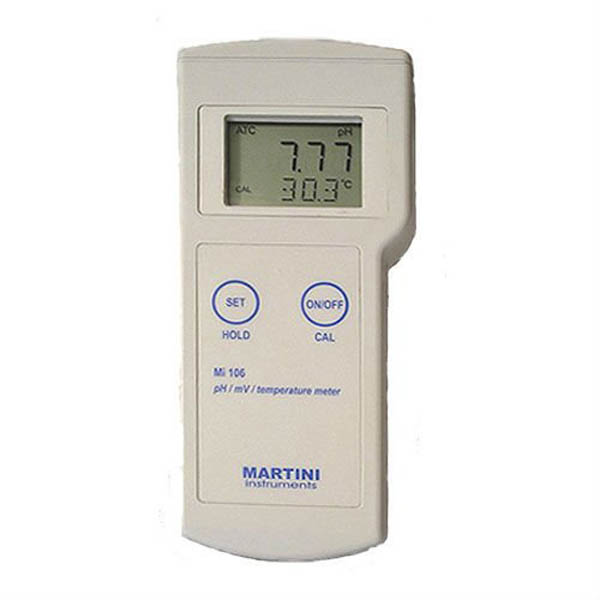

Extended Range pH/ORP/Temperature Meter The MI106 multi parameter portable meter is ideal for field measurements. The included combined pH/ORP electrode has a built-in temperature sensor and amplifier to prevent electrical interference. The large display shows readings in an extended range from -2.00 to 16.00 pH or +/ - 2000 mV and simultaneously shows temperature from -5.0 to 105.0 deg C or 23 to 221 deg F.

The MI106 has a stability indicator and hold feature that freezes the display for easy and accurate recording. The large display also has graphic symbols to guide you through all operations. When switched ON it performs a self-check and displays the percentage of the remaining battery level to assure proper working condition.

SPECIFICATIONS

• pH Range: -2.00 to 16.00 pH

• mV Range: -2000 to +2000 mV

• Temp Range: -5.0 to 105.0 deg C / 23.0 to 221.0 deg F

• pH Resolution: 0.01 pH

• mV Resolution: 1 mV

• Temp Resolution: 0.1 deg C / 0.1 deg F

• pH Accuracy: +/ - 0.02 pH

• mV Accuracy: + / - 2 mV

• Temp Accuracy: + / - 0.5 deg C up to 60 deg C; + / - 1 deg C outside / + / - 1 deg F up to 140 deg F; + / - 2 deg F outside

• pH Typical EMC Deviation: + / - 0.02 pH

• mV Typical EMC Deviation: + / - 2 mV

• Temp Typical EMC Deviation: + / - 0.2 deg C / + / - 0.4 deg F

• Temperature Compensation: automatic, from -5 to 80 deg C / 23 to 176 deg F

• pH Calibration: automatic, 1 or 2-point

• mV Calibration: factory calibrated

• Probe: MA923D/1, amplified pH/ORP/temperature probe (included)

• Environment: 0 to 50 deg C / 32 to 122 deg F; max RH 95%

• Battery Type: 1 x 9V (included)

• Battery Life: approx. 500 hours of use

• Auto-off: after 8 minutes of non-use

• Dimensions: 200 x 85 x 50 mm

• Weight: 260 g

• # MA9016 Electrode cleaning solution, 230mL

• # M10000B Electrode rinse solution, 20mL,

All measurements are approximate.
