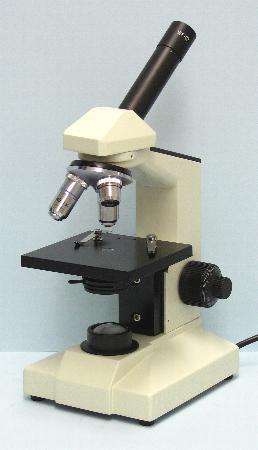

Inclined Monocular Microscope

Strong, Sturdy Metal Die-cast body, protective baked enamel finish. Full size Large Microscope. Base 6 x 7 inch with skid proof rubber feet, Height 14 inch. Supplied with Dust Cover.

Microscope Head: Monocular, 45 deg inclined, 360 deg rotatable, with set screw.

Eyepiece: Widefield with pointer, DIN 10x, Field No. 18.

Nosepiece: Triple, ball bearing Movement with positive stops.

Objectives: Para-foculed, Color Coded, DIN, 4x, 10x & 40xR(R-Spring Retractable).

Stage: Large, Sturdy, 120 mm x 120 mm. With Spring Loaded Stage Clips.

Abbe Condenser: With Iris Diaphragm, N.A. 1.25.

Focusing: Coaxial coarse and fine focusing.

Illumination: 20W Halogen, with on-off switch.

Electric Cord: 3-wire grounded plug.

Weight: 10 lbs.

Measurements are approximate.
