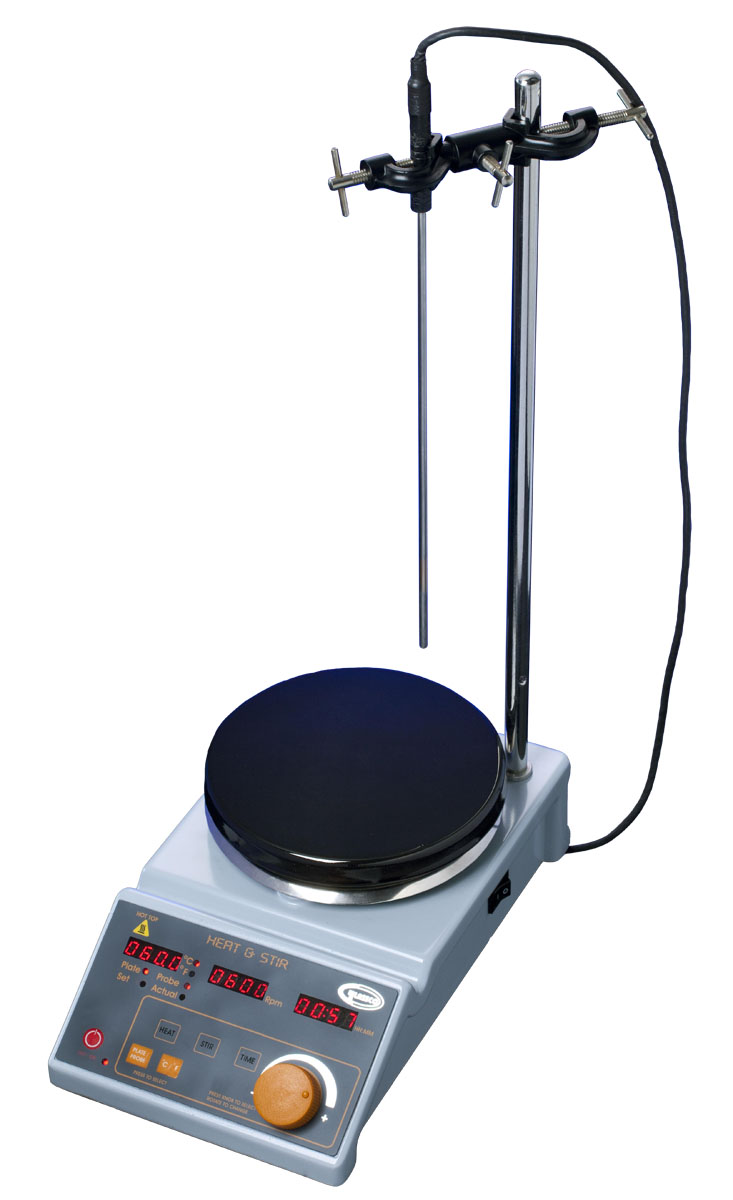

Hot Plate / Magnetic Stirrer Digital Ceramic Top

Features:

• Ceramic coated plate, chemically resistant and scratch proof
• Even heat distribution
• Thermal insulation for cool body operation
• Digital set up temperature controller with independent LED display
• Inclusive PT-100 temperature sensor probe
• Installed with double PT sensors for fail safe operating mechanism
• Hot top indicator for temperature above 50 degrees Celsius, even when switched off
• Set safety cut-off for maximum temperature limit for top plate or probe
• Maximum heating plate temperature up to 350 degrees Celsius
• Large top plate to accommodate beaker up to 3000mL
• Selection of Celsius and Fahrenheit
• Selection of hot plate and probe temperature
• Error code display at any kind of failure
• Digital set-up of RPM with independent LED display
• Maximum stirring speed up to 1500 RPM
• High magnetic strength
• Single multi-turn intelligent knob operation
• Digital set-up of time with independent LED display
• Count-up indication of minutes and hours
• Audible alarm at time cycle end for safety and ease of unsupervised operation

Heating Plate Material: Stainless Steel with Ceramic Coating
Heating Plate Diameter: 150mm
LED Displays: Temperature, RPM, Time
Speed Range: 50 to 1500 RPM
Maximum Stirring Bar Length: 80mm
Heat Output: 450 W
Temperature Range: Ambient to 350 Degrees Celsius
Adjustable Safety Cut-Off: 50 to 400 Degrees Celsius
Control Accuracy of PT100: +/- 1k
Unit Dimensions: 273x160x102mm
Unit Weight: 3.3 kgs
Permissible Ambient Temperature: 5-40 Degrees Celsius
Permissible Relative Moisture: 80%
RS232 Interface: Yes
Analog Output: No
Frequency: 60 Hz
Voltage: 110 V

• Zinc Boss Head 16mm – 1 Piece
• Stainless Steel Rod 400x12mm – 1 Piece
• Magnetic Stirring Bar 35x14mm – 1 Piece
• PT100 Sensor Probe – 1 Piece
