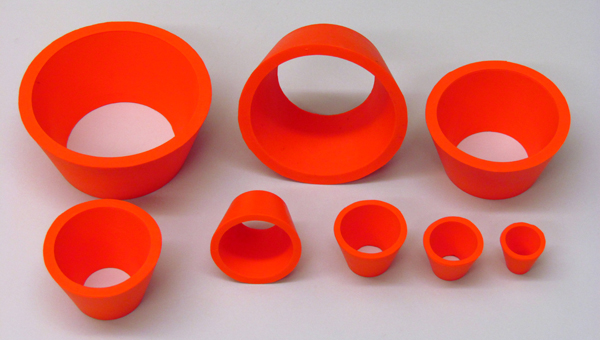

Filter Adapter Filtration Set of 8

Rubberized filter adapters are designed to seal and protect your glassware. These adapters will provide an air tight seal when filtering with filter flasks. They are usually used to support buchner funnels and protect glassware when filtering. These adapters can be nested to create the perfect fit and for easy storage. Each adapter has a number molded on the top surface for easy reference. Set includes 8 adapters.

Adapter #1
Height: 19mm
Top Inner Diameter: 16mm
Bottom Inner Diameter: 8mm
Thickness: 2.43 mm

Adapter #2
Height: 20mm
Top Inner Diameter: 22mm
Bottom Inner Diameter: 11mm
Thickness: 3.06 mm

Adapter #3
Height: 24mm
Top Inner Diameter: 28mm
Bottom Inner Diameter: 16mm
Thickness: 3.34 mm

Adapter #4
Height: 28mm
Top Inner Diameter: 34mm
Bottom Inner Diameter: 20mm
Thickness: 4.00 mm

Adapter #5
Height: 34mm
Top Inner Diameter: 44mm
Bottom Inner Diameter: 25mm
Thickness: 4.82 mm

Adapter #6
Height: 35mm
Top Inner Diameter: 57mm
Bottom Inner Diameter: 39mm
Thickness: 5.30 mm

Adapter #7
Height: 37mm
Top Inner Diameter: 68mm
Bottom Inner Diameter: 47mm
Thickness: 5.63 mm

Adapter #8
Height: 40mm
Top Inner Diameter: 80mm
Bottom Inner Diameter: 55mm
Thickness: 6.00mm

Measurements are approximate.
