EKG Sensor for Data Logger

Each sensor requires a sensor cable to connect to LabMate+ or Tablet+. Sensor cable sold separately.

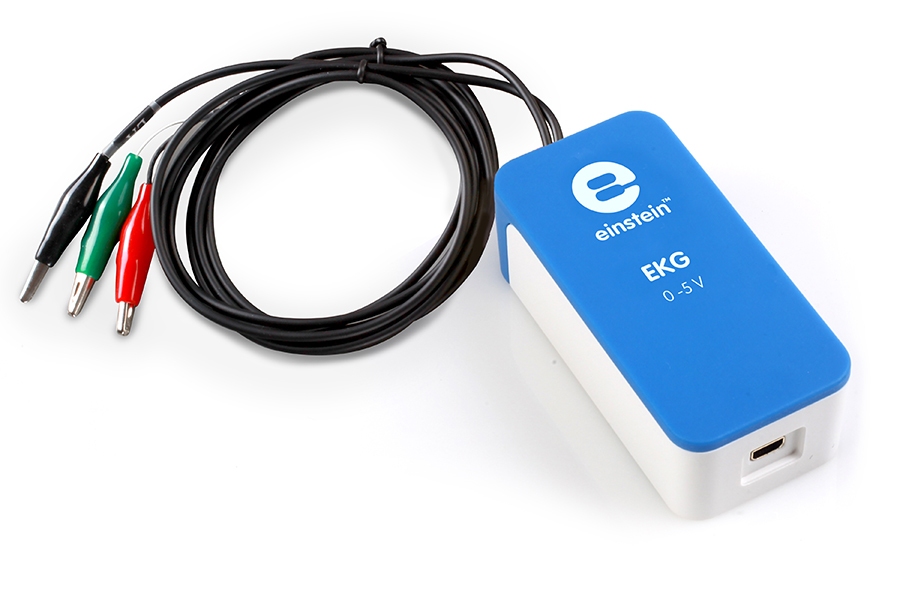

The EKG (Electrocardiogram) Sensor measures cardiac electrical potential waveforms (voltages produced during contractions of the heart). Utilizing this sensor enables students to investigate the electrical signals generated by their own heart. It consists of Fourier’s plastic sensor case and three electrode leads and also comes with a package of one hundred silver/silver chloride electrode patches that can be attached to the skin. The sensor’s circuitry isolates the user from the possibility of electrical shock.

Specifications:

Range: 0 to 5 V
Resolution (12-bit): 1.23 mV
Recommended Sample Rate: 100 samples per sec
Voltage Protection: 4 kV
Isoelectric Line (Gain): 1 mV body potential = 1 V sensor output

Maintenance: The electrodes should be kept refrigerated

Measurements are approximate.
