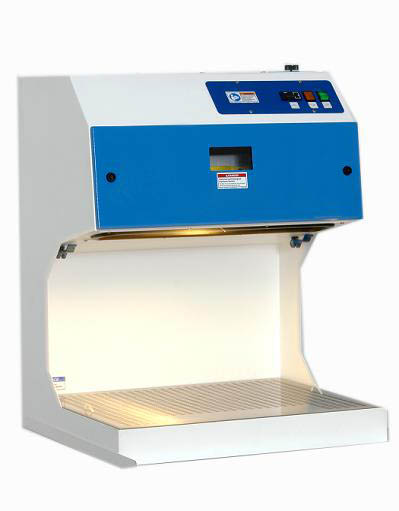

Portable Ductless Fume Hood 24 Inch

SPECIFICATIONS

• Airflow (CFM): 145

• Face Velocity (FPM): >80

• Lighting: 18 watts

• Main Filter Weight: 18 pounds

• HEPA optional

• Noise Levels: 52 dBA

• External Dimensions (W x D x H inches): 24 x 22.75 x 31.5 inch

• Working Height (inches): 19

• The efficient and economical portable fume hood is specifically designed to provide a small bench mounted unit with unrestricted access for those operations that are difficult to perform in a conventional fume hood

• The downflow action takes the contaminated air away from the operator

• Provides the operator safety where routine work is being done

• Typical applications include microscope work, fingerprint processing, and veterinary and dental work

• Lightweight and completely portable units feature the following: low airflow alarm, 80 f/m face velocity, whisper quiet 52 dBA brushless and sparkless centrifugal fan, open front and sides for easy viewing, a clamp that totally eliminates any bypass leakage, and an electrostatic pre-filter

• Requires no ducting or installation costs; can be placed on any benchtop

• Units operate at low noise levels (52 dBA) and because they recirculate, they do not exhaust expensive conditioned and/or heated air into the atmosphere

• Units are epoxy-coated steel, white in color with a Polypropylene spill tray

• 19 working height allows easy access to equipment

• Alarm sounds when airflow falls to an unacceptable level

• Face velocity of 80 f/m ensures containment of fumes and particulates for operator safety

• Stainless steel tray is removable for easy cleaning and to provide access to the pre-filter

• Integral lighting gives good illumination of the area

• All mechanisms are located in the clean side of the filter, ensuring that switches and electrical components are isolated from any contamination

• The filter clamping mechanism allows for easy installation of the filter and ensures an even seal at the filter face to prevent bypass leakage

• Choose your main filter from 3 filters listed below or call for information on additional filters that are available to suit your specialized application needs (Main filter needed but not included)

• Electrostatic pre-filter has an efficiency superior to 99.6%

• Choice of main filters include: carbon filter for solvents, alcohols, and organics; HEPA filter for particulate filtration; or a combined carbon/HEPA filter (Note: a main filter is needed in addition to the pre-filter)

• Filters generally need to be changed annually, depending on what chemicals are being used and how much is being evaporated into the filter. If needed, an application check list providing this information can be filled out by the operator and can be analyzed to predict very closely what the actual filter lifetime will be.

• When the pre-filter needs to be changed, the operator will be alerted by the low airflow alarm

• Unit has a main on/off switch and runs on 110V, 60Hz single phase

• Exceeds OSHA, ANSI, and all relevant international standards

• Includes: pre-filter, integral fluorescent lighting (explosive safe and mounted out of operator line of sight), and 1 fan speed controller. This item will ship directly from the manufacturer and may require additional shipping charges!

• Warranty: 2 years manufacturers warranty - parts and labor - except filters

• 3343-34- Pre-filter for 24 inch workstation, pack of 6

• 3343-28 - Carbon filter for 24 inch workstation

• 3343-30 - HEPA filter for 24 inch workstation

• 3343-32 - Combination Carbon/HEPA filter for 24 inch workstation

  All measurements are approximate.
