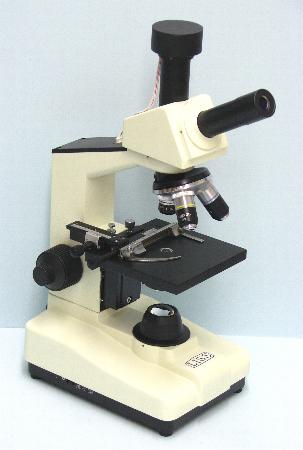

Compound Video Microscope

Start viewing your work on TV. Easy and fast hook up with excellent color reproduction. Strong, Sturdy Metal Die-cast body, protective baked enamel finish. Full size Large Microscope. Anti Fungus Coated Optics. Complete with RCA Video Cord and Power Cord and Dust Cover.

Microscope Head: 45 deg Inclined Monocular Microscope with Built-in CMOS Color Camera.

Eyepiece: Widefield with pointer, DIN 10x, Field No. 18.

Nosepiece: Triple, ball bearing Movement with positive stops.

Objectives: Para-foculed, Color Coded, DIN, 4x, 10x & 40xR (R-Spring Retractable).

Stage: Large, Sturdy, 120 mm x 114 mm.

Mechanical Stage: Graduated, Attached on top of Stage, Knobs on top, Stage Movement 60 mm x 30 mm.

Condenser: Single Lens with Iris Diaphragm 0.65 N.A.

Focusing: Coaxial coarse and fine focusing.

Illumination: Cool LED, with Light Intensity Control.

Video Camera Specifications: Sharp Image producing CMOS Color Camera with 1/3 inch Sensor NTSC. Auto White Balance.High Resolution 420 TV Lines. Best for use with TV with Video Card. 3 LUX or stronger Illumination Required.

Weight: 13 lbs.
