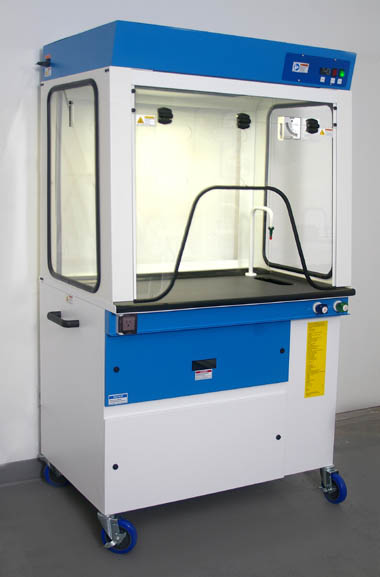

Classroom Mobile Demonstration Fume Hood

Classroom Mobile Demonstration Fume Hood

• Airflow (CFM): 175

• Noise Levels: <55dBA

• External Dimensions: 39.5 W x 28.5 D X 77.5 H (inches)

• Designed with a low center of gravity so it can be moved easily from room and room

• Dimensions ensures unit will pass through doorways

• All around visibility for classroom demonstrations

• Easy installation~no ducting

• Face velocity of 100 f/m ensures containment of fumes and particulates for operator protection

• Easy-to-use control panel has all vital safety information listed for quick reference

• Features: low airflow alarm,100 f/m face velocity, hinged front sash, fluorescent lighting, electrical power outlet, clear acrylic sides and back, convenient storage space under fume hood, and pass through ports at rear of enclosure

• Whisper quiet 55 dBA brushless and sparkless centrifugal fan

• Equipped with both an alarm that alerts the operator when the airflow falls to an unacceptable level and an electronic elapse run time counter

• Unit includes an electrostatic pre-filter (efficiency superior to 99.6%) to which the main filter is added.

• Carbon filters and HEPA filters are available to suit specific needs. Call for information. (Note: a main filter is needed in addition to the pre-filter but is not included.)

• Constructed of polyethylene coated mild steel and equipped with pull handles on the side and lockable heavy-duty casters

• Unit has a main on/off switch and operates on 100V, 60 Hz (single phase)

• Unit exceeds OSHA, ANSI and all relevant international standards

• Includes: pre-filter for dusts, integral fluorescent lighting (explosion safe and mounted out of operator line of sight), an electrical power outlet, 2 rear mounted cable pass through ports, an electronic counter, and low airflow alarm

• Warranty: 2 year manufacturers warranty on parts and labor, except filters
  The below accessories are not included, but are available for purchase.
  • EDU01 - Multi-layer main filter, 22 lbs.

  • EDU02 - Water and Gas Services

  • EDU03 - Electronic filter saturation monitor/alarm

  Measurements are approximate.
