Carbon Dioxide CO2 Sensor

Each sensor requires a sensor cable to connect to LabMate+ or Tablet+. Sensor cable sold separately.

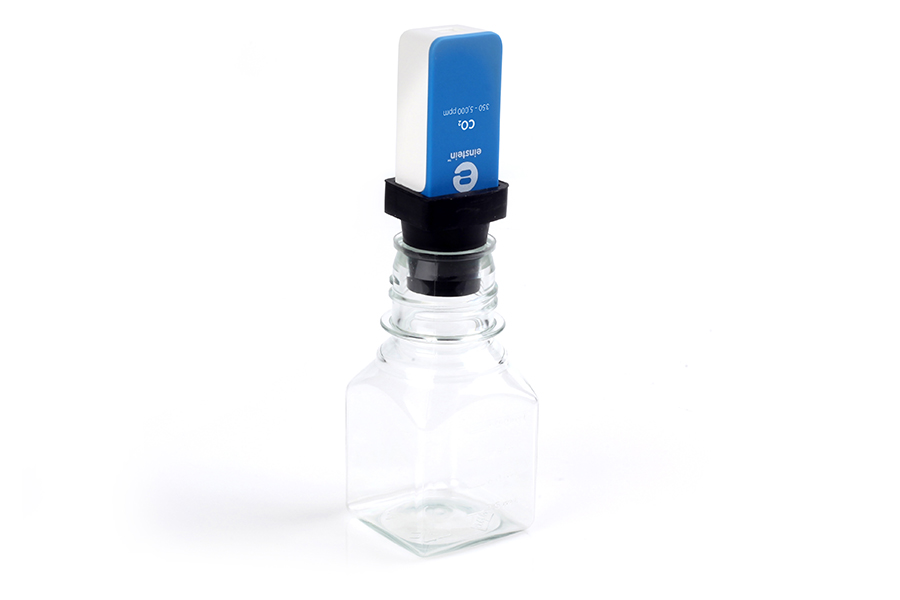

The CO₂ Sensor measures carbon dioxide concentration (ppm) in gases such as air. It is a solid electrolyte sensor which offers high selectivity to CO₂ with low dependency on humidity. A range of 350 to 5,000 ppm of carbon dioxide can be detected, making it ideal for indoor air-control applications. It is supplied with a 100 mL plastic sampling bottle and a rubber stopper.

Specifications:

Range: 350 to 5,000 ppm
Accuracy: ±20 % at 1000 ppm
Resolution (12-bit): 8 at 350 ppm; 100 at 5,000 ppm
Recommended Sampling Rate: 10 samples per second
Response Time: 90 seconds (to 90% of final value)
Current Consumption: Approx. 50 mA
Normal Operating Temperature Range: -10 to 50 degC
Normal Operating Humidity Range: 5 to 95%
Storage Temperature Range: -20 to 60 degC
Storage Humidity Range: 5% to 90%

Measurements are approximate.
