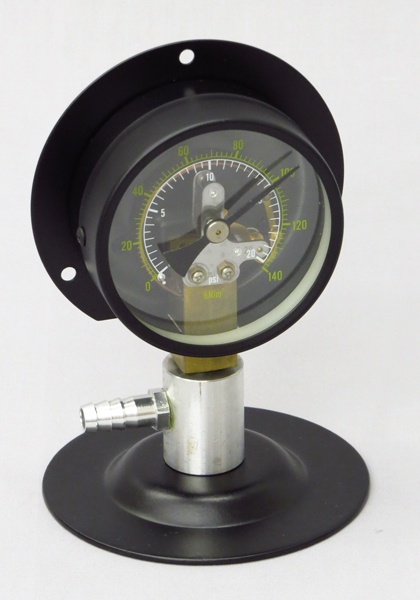

Bourdon Gauge Deluxe

The Bourdon Gauge provides a quick and easy way to accurately measure the pressure of a vacuum or pressurized container. The gauge is calibrated to atmospheric pressure by default. The scale is measured in pounds per square inch (psi) and kiloNewtons per square m (kN/m2) and has a measurement range from 0-140 kN/m2 (0-20 psi). This gauge is durable and will provide accurate measurements.

Dimensions:

Dial Face Diameter: 3.75 inch (95 mm)
Height: 5.75 inch (146 mm)
Base Diameter: 3.9 inch (99 mm)
Tubing Inlet Diameter (recommended tubing Inner Diameter) :0.375 inch (9.5 mm)

Detailed Instructions Included.

Measurements are approximate.
