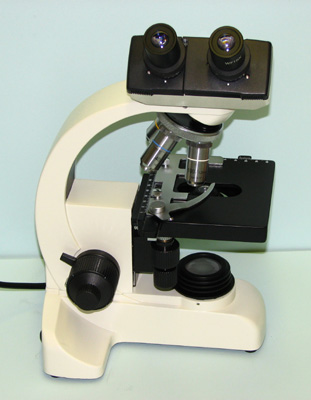

Binocular Microscope

Latest Design, Binocular Brightfield Biological Microscope for School and University , sturdy construction and convenient operation. It is equipped with Superior Flatfield Semi-Plan Optics, Achromatic objectives, Widefield Pointer Eyepieces, gear wheel focusing with tension adjustable stopper. Large base with rubber feet.

Microscope Head: Binocular, 45 deg inclined, 360 deg rotatable, with diopter and interpupillary adjustments.

Eyepiece: Widefield with pointer, DIN 10x, Field No. 18.

Nosepiece: Quadruple, ball bearing Movement with positive stops.

Objectives: Semi-Plan, Para-foculed, Color Coded, DIN, 4x, 10x, 40xR, 100xR (R-Spring Retractable).

Stage: Large, Sturdy, 125 mm x 115 mm.

Mechanical Stage: Graduated, Built-in with under stage co-axial movement controls, 40mm Y-axis, 75 mm X-axis.

Abbe Condenser: With Iris Diaphragm rack and pinion focusing. N.A. 1.25. Spring Loaded Condenser System.

Focusing: Coaxial coarse and fine focusing, Graduated, With Tension Control and Stage Lock to protect gears, objectives and slides. Adjustable tension control.

Illumination: 20W Halogen, with on-off switch and variable intensity.

Electric Cord: 3-wire grounded plug.

Weight: 13 lbs.

Measurements are approximate.
